Industrial Automation Basics and Electrical Diagrams

4.95 /5

(39)

267 already enrolled

About This Course

This Industrial Automation Basics course is designed for individuals looking to understand the fundamentals of designing and implementing automation systems. It covers key topics such as reading electrical diagrams, configuring PLC power supplies, design standards, and working with control cabinet devices. Participants will also learn to integrate automation components like inverters, servo drives, and machine safety systems, enabling practical application of the acquired knowledge. The course provides a solid foundation for further development in the field of industrial automation.

Learning Objectives

Learn how to read electrical diagrams for industrial automation systems.

Understand the fundamentals of industrial automation and its key components through an introductory overview.

Learn how to join and utilize a professional support community, such as the Discord group for automation professionals and PLC programmers.

Receive and use the Automation Design Guide, a comprehensive resource to assist in project planning and execution.

Understand the design principles and assumptions for industrial machines, such as a pallet wrapper system.

Familiarize yourself with the standards (IEC 60204-1) and directives for machine design, ensuring compliance with industrial regulations.

Explore the functionality and operation of electric motors, including their role in automation systems.

Learn about machine supply systems, understanding how to design and configure effective power delivery solutions.

Discover the selection criteria for enclosures and measurements in LV switchboards, in compliance with IEC 61439 standards.

Understand the components and devices in a control cabinet, from relays to circuit breakers.

Learn the principles of power supply design for PLCs and control circuits, ensuring stability and efficiency.

Gain knowledge about overcurrent protection for 24VDC circuits, safeguarding systems from electrical faults.

Understand how to integrate PLC controllers into electrical diagrams, bridging the gap between hardware and software.

Explore digital and analog I/O systems, including inputs, outputs, and their connection to automation devices, as well as connecting inverters and servo drives for motion control.

Requirements

No special requirements. You will start with the basics of automation systems design, reading electrical diagrams and more!

Target Audience

PLC Programmers
Automation Engineers
Electrical Engineers
Industrial Engineers
Maintenance Technicians
Control System Technicians
Instrumentation Technicians
This course welcomes beginners, making it an ideal starting point for aspiring PLC programmers to build confidence and skills in automation.

Curriculum

72 Lessons8h

Introduction

How to Use the Course?00:4:51

How to get help? Join the Discord group for Automation Professionals and PLC Programmers!

Receive a PDF with the Automation Design Guide

Projects assumptions of a pallet wrapper machine

How To Read Electrical Wiring Diagram?

Standards and directives for machine design

Electric motors

Machine supply system

Selection of enclosure and measurements in LV switchboards in accordance with PN-EN 61439

Devices in the control cabinet

Power supply for control circuits

Description of overcurrent protection for 24VDC circuits

PLC controller in the electrical diagram

PLC digital inputs

PLC digital outputs

Configure PLC System for your project – TIA Selection Tool (homework)

Analog I/O

Connecting the inverter and servo drive

Machine safety system – in cooperation with Wieland Electric

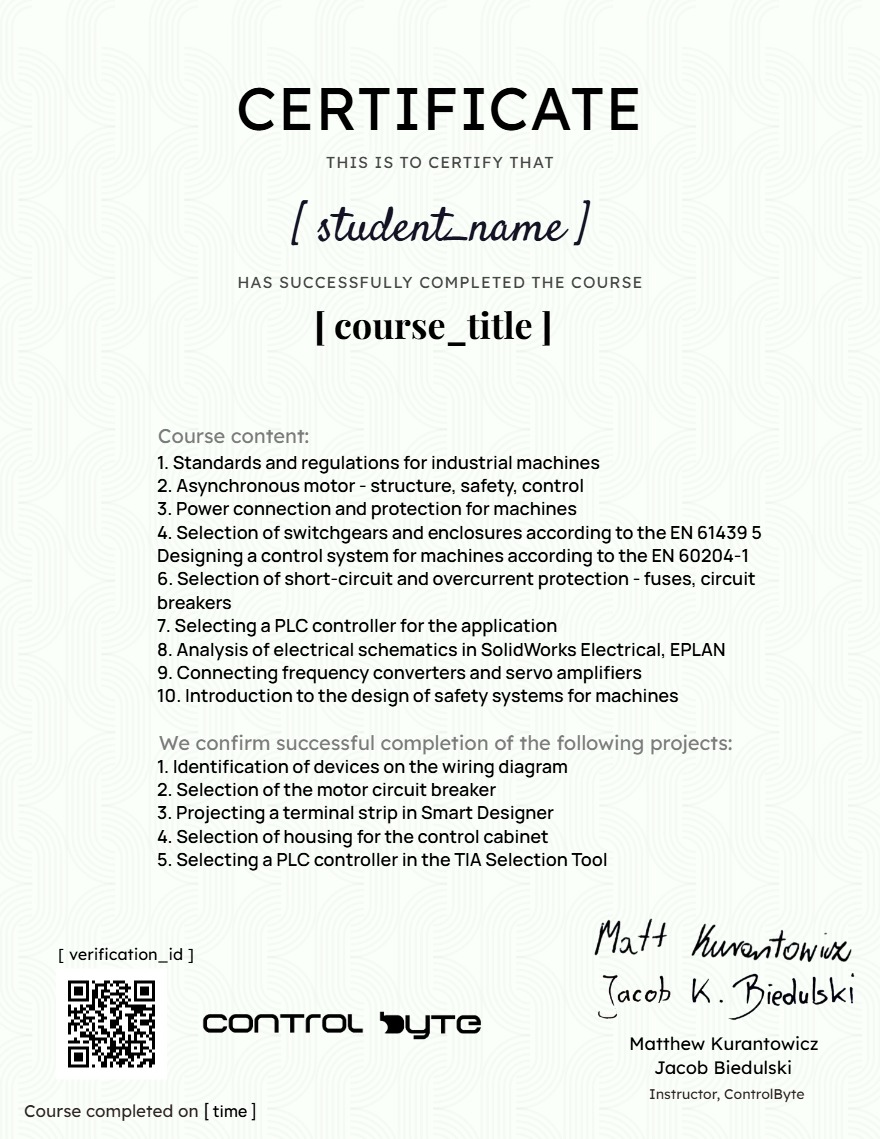

Add this certificate to your resume to demonstrate your skills & increase your chances of getting noticed.
